ASTM A105 vs. A182: Which Steel Flange Material Do You Need?



If you’ve been ordering flanges for more than five minutes, you’ve run into this question. A105 or A182, what’s the difference, and does it actually matter which one you spec?

The short answer: yes, it matters. A lot. These are not interchangeable materials, and choosing the wrong one can cost you a failed inspection, a rejected weld, or worse, a compromised joint in service. We’ve been in this business since 1986, and material mix-ups are one of the most common, and most avoidable, mistakes we see in the field.



Here’s the plain-English breakdown.

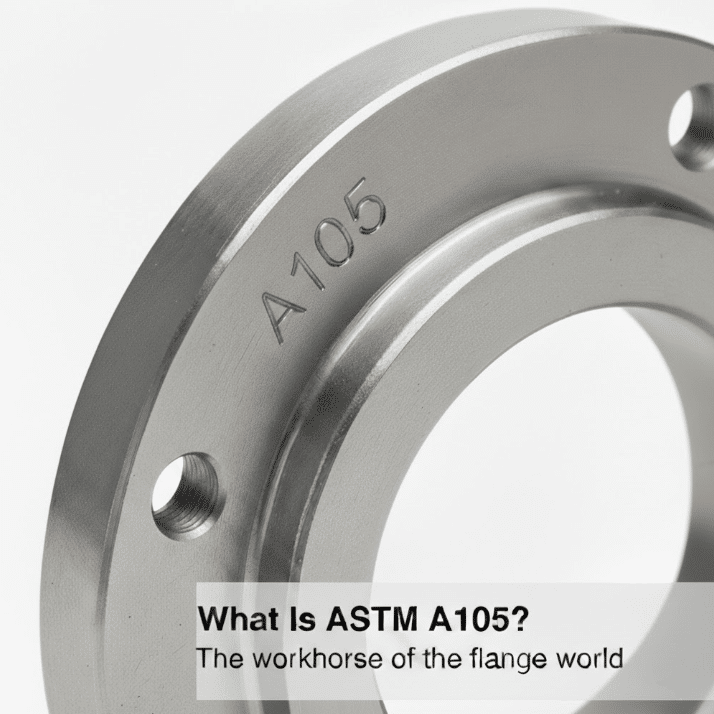

What Is ASTM A105?



ASTM A105 is a carbon steel specification for forged piping components, flanges, fittings, valves, intended for use in ambient and higher-temperature service. It’s the workhorse of the flange world. If you’re running a standard carbon steel piping system with no extreme temperature swings and no corrosion concerns that require an upgrade, A105 is almost certainly what you want.



The key characteristics:



• Carbon steel composition (primarily iron and carbon, with small amounts of manganese, silicon, and other elements)
• Tensile strength: 70,000 psi minimum
• Yield strength: 36,000 psi minimum
• Temperature range: Rated for service from -20°F up through 1000°F+ depending on pressure class
• Weldable, machinable, widely available, and cost-effective



A105 is governed by ASME B16.5 and is listed under Material Group 1.1, which is the most common material group you’ll encounter in flange specifications. It’s the default spec for carbon steel flanges in oil and gas, petrochemical, water treatment, power generation, basically everywhere that doesn’t require something more exotic. For a full look at our carbon steel flange options including A105 in all sizes and pressure classes, check out our product page.



What Is ASTM A182?



ASTM A182 is a different animal. It covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves. The key word there is alloy and stainless. A182 is not a single material, it’s a specification family that includes dozens of grades, each with their own chemical composition and mechanical properties.



When someone says “A182 flange,” they almost always follow it with a grade designation, because without it, the spec is incomplete. The most common grades you’ll encounter:



• A182 F304 / F304L, Austenitic stainless steel, the standard 18-8 stainless. Good corrosion resistance across a wide range of environments.
• A182 F316 / F316L, Similar to 304 but with added molybdenum, which significantly improves resistance to chlorides and pitting corrosion. Common in marine, offshore, and chemical processing applications.
• A182 F11 / F22, Chromium-moly (Cr-Mo) alloy steel grades. High-temperature service is where these shine, steam lines, refinery heaters, power generation.
• A182 F51 (Duplex 2205), Duplex stainless with excellent strength and corrosion resistance. Higher cost but justified in aggressive environments.
• A182 F91, 9Cr-1Mo-V alloy for very high-temperature service. Power plant territory.



What all A182 grades share is that they’re designed for applications where plain carbon steel isn’t enough, whether that’s elevated temperature, low temperature, or corrosive service.



A105 vs. A182: The Core Differences





	ASTM A105	ASTM A182
Material type	Carbon steel	Alloy or stainless steel
Typical use	General service	High-temp, low-temp, or corrosive service
Cost	Lower	Higher (grade-dependent)
Corrosion resistance	Limited, relies on coatings/linings	Good to excellent depending on grade
Temperature range	-20°F to ~1000°F	Grade-dependent; some rated to -425°F (cryogenic), others to 1400°F+
Weldability	Straightforward	Grade-dependent; some require pre/post-heat
Availability	Widely stocked	Stocked for common grades; less common grades may require lead time



So When Do You Use Each?



Use A105 when: Your fluid is non-corrosive (or corrosion is managed externally), your operating temperatures are in the standard range, and budget is a factor. Most carbon steel process piping, general utility services, non-corrosive liquid and gas lines, A105 is the right call. It’s proven, it’s available, and it won’t break the project budget.



Use A182 when: Your process fluid is corrosive to carbon steel. You’re operating outside the standard temperature envelope, either running a high-temperature steam or refinery line that needs Cr-Mo, or dealing with cryogenic or low-temperature service where carbon steel gets brittle. Offshore or marine environments where chlorides are present. Hygienic or food-grade applications requiring stainless. Any time your process engineer or the applicable piping code calls for a specific alloy, you follow the spec.



A good rule of thumb: if your P&ID or line list specifies a material, start there. If you’re selecting material for the first time, ask what the process fluid is, what the operating temperature range looks like, and whether there are any corrosion or code requirements. The answers will tell you whether you need A105 or which A182 grade fits.



A Common Mistake to Avoid



We see this occasionally, and it’s worth flagging: A105 flanges are sometimes zinc-plated or painted for corrosion protection during storage and shipping. That coating does not transform the flange into a corrosion-resistant material for process service. If your application requires stainless or alloy, order A182. A zinc coating on an A105 flange is not a substitute.



Similarly, we’ve seen customers mix A105 and A182 F316 flanges in the same corrosive line because “they both had the right pressure class.” That’s asking for galvanic corrosion problems. Material consistency across a flange assembly matters.





The Bottom Line



A105 is your carbon steel standard, economical, proven, and appropriate for the vast majority of general service piping applications. A182 is your upgrade path when the application demands more: corrosion resistance, extreme temperatures, or code-mandated alloy requirements.
When you’re not sure, tell us what the service is. We’ve been through this conversation with engineers, procurement managers, and plant operators across every kind of industrial application you can imagine. We can help you land on the right spec before you place the order, not after the MTRs come back wrong.
Ready to get the right material for your project? Contact the Texas Flange team and we’ll get you sorted out.



Related reading: For the full decision framework on choosing flange material and pressure class, see our flange selection guide.
