Selecting the correct flange standard is a small decision that will shape installation, maintenance and compliance for the life of a pipeline. The comparison awwa vs ansi flange matters because these standards reflect different design assumptions, intended uses, and pressure classes. This guide explains what an AWWA flange is, how it differs from ANSI (ASME) flanges, and practical steps to choose the right option for waterworks, industrial piping, or mixed-spec projects. You’ll also find clear, step-by-step instructions to access CAD models and PDF drawings so you can integrate the flange data into your engineering workflow.
What Is an AWWA Flange?
Definition (AWWA standards)
An AWWA flange follows the American Water Works Association standards (notably AWWA C207 for blind and hub flanges and other related AWWA specs). These standards are tailored for water distribution and treatment systems, focusing on compatibility with valves, pipeline fittings, and municipal infrastructure.
Typical uses
- Water distribution mains and service connections
- Treatment plants, pumping stations, and potable water systems
- Low- to medium-pressure pipelines where corrosion-resistance and ductile iron options are common
Materials commonly used
AWWA flanges frequently use ductile iron, cast iron, and carbon steel; protective coatings and linings are common to meet potable-water requirements. Stainless steel is used selectively for corrosive environments.
Pressure ratings
AWWA flange ratings are commonly in the lower-to-mid pressure range (often up to ~300 psi for many municipal applications), and their designs optimize sealing, corrosion protection, and integration with waterworks fittings.
(See AWWA flange resources at Texas Flange for drawings and specs.)
https://www.texasflange.com/awwa-flanges/
What Is an ANSI Flange?
Definition (ANSI / ASME B16.5 / B16.47 standards)
When we say “ANSI flange” in practice we usually mean flange designs set by ASME/ANSI standards such as ASME B16.5 (NPS up to 24″) and ASME B16.47 (large diameter flanges). These standards are widely used across general industry and cover a broad range of pressure classes and materials.
Typical uses
- Oil & gas pipelines, refineries, and chemical plants
- Power generation and high-temperature steam systems
- High-pressure process piping in industrial facilities
Materials commonly used
ANSI (ASME) flanges are commonly produced in carbon steel, low-alloy steel, stainless steels (304/316), and a wide selection of specialty alloys for high-temperature or corrosive services.
Pressure ratings
ANSI/ASME classes range from Class 150 up to Class 2500, covering low through very high pressures. That broad scope makes ANSI flanges the default in many heavy-duty industrial applications.
(See ANSI flange resources at Texas Flange for drawings and specs.)
https://www.texasflange.com/ansi-flanges/

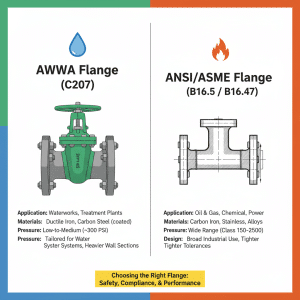

AWWA vs ANSI Flange: Main Differences
Below are the practical distinctions to consider when comparing awwa vs ansi flange options.
Design Standards (AWWA C207 vs ASME B16.5)
- AWWA: focuses on pipe and valve interfaces common to municipal water—dimensions and jointing assume ductile iron and waterworks fittings.
- ANSI/ASME: defines broader mechanical dimensions, bolt patterns and pressure class definitions for industrial piping. ASME standards provide tighter tolerances for high-pressure and high-temperature service.
Pressure Ratings (low vs high pressure)
- AWWA: optimized for low-to-medium pressures typical of water distribution (commonly up to ~300 psi).
- ANSI: covers a wide pressure range (Class 150 → 2500), appropriate for aggressive industrial services.
Applications (waterworks vs industrial)
- Use AWWA for water treatment, mains and municipal projects.
- Use ANSI/ASME for refineries, chemical plants, power stations, and high-pressure pipeline systems.
Dimensions and Thickness
- AWWA flange thickness and bolt patterns are set for compatibility with waterworks fittings and are often heavier in certain diameters to meet municipal handling and installation practices.
- ANSI flanges follow ASME dimensional tables; thickness, raised-face heights and bolt circle diameters vary by class and are standardized for cross-industry compatibility.
Cost and Availability
- AWWA parts (esp. ductile iron) may be more economical for municipal projects but availability depends on regional suppliers.
- ANSI flanges (carbon/stainless) are widely available worldwide in many pressure classes; specialty alloys increase cost.

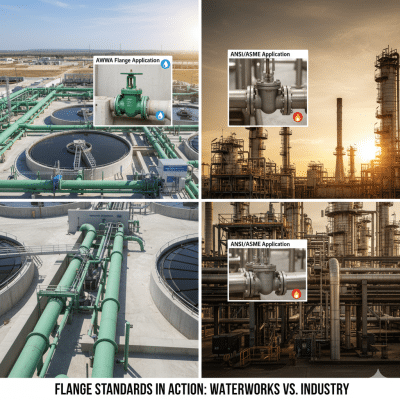

Applications of AWWA and ANSI Flanges
AWWA Flanges
- Water treatment plants and reservoir piping
- Distribution mains, hydrant and valve connections
- Potable water service lines and municipal projects
ANSI Flanges
- Refinery piping and chemical process lines
- High-pressure steam and power plant headers
- Industrial utility pipelines and offshore systems
How to Choose Between AWWA and ANSI Flanges
Choosing between awwa vs ansi flange depends on the following factors:
- Operating pressure and temperature — If your system requires high pressure or elevated temperature, ANSI/ASME classes are likely necessary.
- Fluid type — Potable water and sanitary requirements push projects toward AWWA-compliant materials and linings. Aggressive chemicals may require ANSI-spec alloys.
- Compatibility with existing piping and fittings — Match the flange standard used across the piping network to avoid alignment or gasket issues.
- Regulatory and owner requirements — Municipal contracts often require AWWA standards; industrial projects may mandate ASME/ANSI.
- Cost and supply chain — Evaluate local suppliers and lead times. For custom transitions, consider hybrid solutions.
If your project crosses standards (for example converting a municipal section to industrial service), a practical approach is to design your own dimensions and check them with an engineer to run calculations to ensure structural integrity and flange compatibility.
How to Download AWWA & ANSI Flange Drawings (Step by step)
If you need drawings (PDF/DWG/STEP) to confirm dimensions or integrate models into your CAD:
- Go to the Texas Flange CAD & 3D Flange Drawings library: https://www.texasflange.com/cad-3d-flange-drawings/
- Use filters to select standard (AWWA or ANSI/ASME), class, size, and facing.
- Browse the result list and click View Detail on the flange you need.
- On the product page, choose the format: PDF, DWG, or STEP (3D).
- Download and import the file into your design tools for layout, clash detection, or fabrication drawings.
This direct access gives you the exact technical data to compare awwa vs ansi flange geometries and ensure correct implementation.
Optimize Your Projects with Guaranteed Quality AWWA and ANSI Flanges
When deciding awwa vs ansi flange, prioritize operating conditions, code requirements, and downstream compatibility. Use AWWA flanges for waterworks and municipal systems where their design and coatings meet potable-water needs. Choose ANSI/ASME flanges for industrial, high-pressure or high-temperature services where broader material and pressure class options are required. If you’re unsure, consult an engineer — and consider designing custom dimensions and checking them with an engineer to run calculations for hybrid or transitional applications.
