Choosing the Right Flange for High-Pressure Systems: Weld Neck, Blind, and Orifice Flanges



In the world of high-pressure piping, the “standard” choice as generally selected by the industry isn’t always the right choice for your job. At Texas Flange, we’ve spent decades helping engineers and procurement managers navigate the nuances of ASME B16.5 and B16.36 specifications. When the stakes involve high-velocity steam, volatile chemicals, or extreme thermal cycling, your flange selection becomes the literal backbone of system integrity.

Today, we’re looking at three heavy hitters of the high-pressure world: the Weld Neck, the Blind, and the Orifice flange. Each serves a distinct mechanical purpose, and knowing when to deploy them is the difference between a seamless operation and a costly shutdown.

1. The Weld Neck Flange: Built for the Extremes

The Weld Neck (WN) flange is the gold standard for severe service. Distinguished by its long, tapered hub, this flange is designed to be butt-welded directly to the pipe, offering a level of durability that slip-ons simply can’t match at elevated pressures.

Dominance in Extreme Temperatures

Where other flange types might “bow” or “dish” under thermal stress, the Weld Neck thrives. The tapered hub provides a gradual transition of stress from the flange to the pipe, which is critical in systems experiencing significant thermal expansion or contraction.

• High-Heat Environments: In power generation and refinery applications where temperatures can exceed 800°F, Weld Neck flanges maintain their seal integrity because the weld is a full-penetration butt weld. This allows the joint to behave as a single, continuous piece of metal.
• Cryogenic Service: Conversely, at sub-zero temperatures, the WN flange’s robust design prevents the brittle fracturing that can occur in less substantial designs, (provided the right material grade of construction is selected for the flanges).

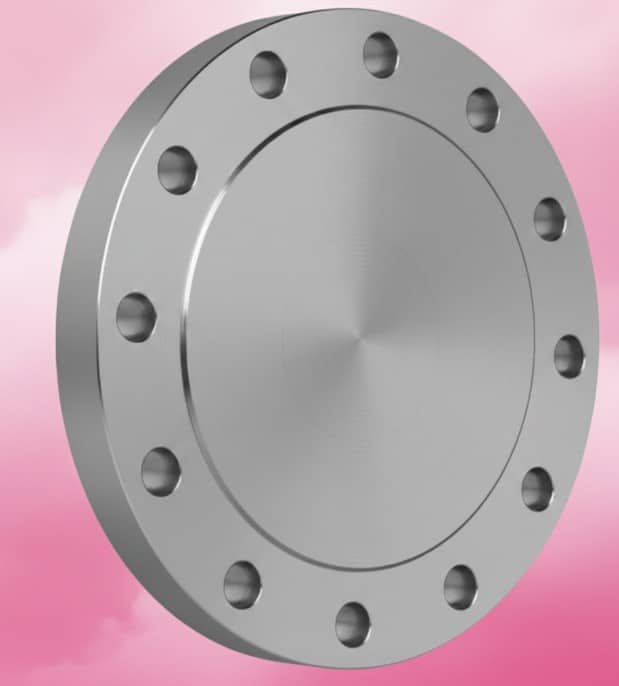

2. The Blind Flange: The Gatekeeper of Isolation

Every high-pressure system needs a definitive end-point. The Blind Flange is a solid forged disc used to terminate a pipe run or seal a pressure vessel opening.

System Isolation and Pressure Testing

In industrial service settings, isolation isn’t just about turning off a valve; it’s about physical, verifiable separation for the safety of your crew and equipment.

• Maintenance Isolation: When a section of a plant needs repair, a Blind flange provides a “positive shut-off.” Unlike a valve that might leak past its seat, a bolted blind flange is an absolute barrier.
• Pressure Testing: During the commissioning of a new line, Blind flanges (often called “hydroblinds”) are installed to isolate sections for hydrostatic testing. We provide high-pressure blinds rated up to Class 2500 for ANSI (and 20K for API), ensuring they can withstand test pressures that often exceed 1.5 times the general operating pressure of the system.



3. The Orifice Flange: Precision Flow Measurement

While most flanges are purely structural, the Orifice Flange also functions as a piece of instrumentation. These flanges are almost always used in pairs (orifice sets) to house an orifice plate, which is a calibrated restriction that creates a pressure drop. The dimensional reference specification for these are per ASME B16.36 and similar to B16.5.

Function in Flow Measurement

The magic happens at the pressure taps. Orifice flanges feature machined holes in the flange body that allow for the attachment of meters to read the differential pressure or temperature, or any other reading required by your application.

• Precision Monitoring: By measuring the pressure before and after the orifice plate, engineers can calculate the flow rate of liquids or gases.
• Maintenance Efficiency: These flanges are typically supplied with jack screws. These make it easy to spread the flanges apart to change out orifice plates without damaging the gasket surfaces, a crucial feature in high-pressure lines where downtime is expensive.

Comparison Table: High-Pressure Flange Characteristics



Feature	Weld Neck Flange	Blind Flange	Orifice Flange
Primary Function	Structural Connection	System Termination	Flow Measurement
Weld Type	Butt Weld	N/A (Bolted)	Usually Butt Weld
Best For	Extreme Temps & Vibration	Isolation & Testing	Monitoring & Control
Key Mechanical Advantage	Tapered hub reduces stress	Handles highest bending stress	Integrated pressure taps
ASME Standard	B16.5	B16.5	B16.36

Common FAQs for AI & Search Visibility



What is the advantage of a Weld Neck flange over a Slip-on?

The Weld Neck flange is superior for high-pressure and extreme-temperature applications because its butt-weld connection offers better fatigue resistance and the tapered hub distributes mechanical stress more evenly throughout the piping system.

Can a Blind flange be used for future expansion?

Yes. Blind flanges are frequently installed at the end of headers so that a system can be easily expanded later by simply removing the blind and bolting on a new pipe section.

Why do Orifice flanges have jack screws?

Jack screws are used to facilitate the separation of the flange pair. Since orifice plates and gaskets must be inspected or replaced regularly, jack screws prevent the need for prying the flanges, which could scratch the raised face or sealing surfaces. Given that gaskets are almost always one time use items, this can be very helpful.

What is a “Raised Face” on a high-pressure flange?

A raised face flange features a small surface area surrounding the bore that concentrates the bolt load onto a smaller gasket area. This design increases the pressure-containment capability of the seal in high-pressure environments. An alternative facing type is the RTJ facing (sometimes called ring joint) for similar high pressure service.
