The Complete Guide to Raised Face Flanges: Standards, Sealing Magic, and Smart Applications



In the high-stakes world of industrial piping, picking the right flange isn’t just about lining up bolt holes. It’s about keeping your whole system leak-free and happy. At Texas Flange, we’re all about giving you the know-how to build on solid, precise foundations.

This guide zeros in on the MVP of sealing solutions: the Raised Face (RF) flange. It’s the go-to for most process plants.



1. Why Raised Face Flanges Rule the Roost



The Raised Face flange earns its name honestly, the gasket seating surface sits slightly proud (raised) above the bolting circle. That small elevation is pure engineering genius.

How It Stops Leaks Like a Boss: By concentrating bolt force onto a smaller gasket area, the RF design cranks up the sealing pressure, delivering a tighter, more reliable joint that holds strong even when things get intense.

• Gasket Superpower: Works with a huge variety, from flat-ring sheets to spiral-wound and double-jacketed metallic gaskets.
• Serrated Surface Finish: Most RF flanges come with a stock serrated finish (typically 125-250 µin Ra), where those little grooves “bite” into the gasket for grip that fights blowouts and holds up long-term.

2. Pressure Classes: What They Really Mean



ASME B16.5 lays out the pressure classes that define how much a flange can handle at different temps. Ratings aren’t fixed, they drop as heat climbs.

Common Classes at a Glance:

• Class 150: Low-pressure champs for water, HVAC, fire protection, think everyday utilities.
• Class 300 & 400: Solid for moderate industrial and light chemical work.
• Class 600-2500: Beefy, thick-walled beasts built for oil & gas, power gen, high-pressure steam, the extreme stuff.

Quick reality check: A carbon steel Class 150 might rate ~285 psi at room temp but drops to around 80 psi at 800°F. Always check the full PvT tables for your material and conditions.

3. Material Match-Up: Carbon Steel vs. Stainless Steel



Your flange material is make-or-break for corrosion resistance, strength, and lifespan.

Carbon Steel Flanges (e.g., ASTM A105)

• Tough as nails with excellent load-bearing muscle.
• Wallet-friendly for non-corrosive, heavy-duty jobs.
• Watch out: Rusts easily, often needs galvanizing or epoxy coating outdoors or in wet spots.

Stainless Steel Flanges (e.g., 304/L, 316/L)

• Chromium magic creates a passive oxide layer for killer corrosion resistance, perfect for marine, chemicals, food, or pharma.
• Handles wild temperature swings without breaking a sweat.
• Hygienic superstar: Top pick where contamination can’t happen.

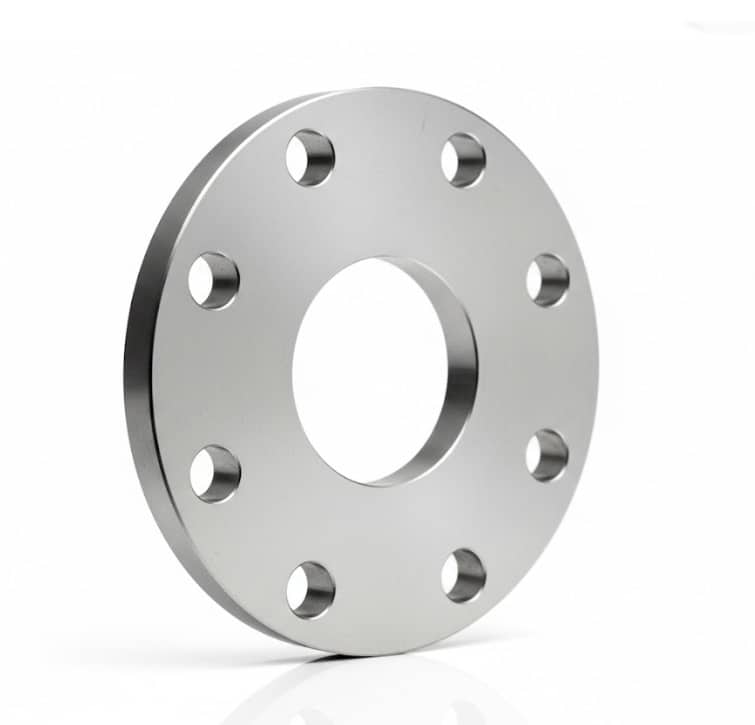

4. Raised Face vs. Flat Face: Quick Cheat Sheet



Mixing these up can lead to trouble, know when to use which.

Raised Face vs. Flat Face — ASME B16.5

Feature	Raised Face (RF)	Flat Face (FF)
Sealing Surface	Elevated ring (1/16″ for Cl. 150/300, 1/4″ higher classes)	Flush with bolt circle
Pressure/Temp Suitability	Medium to high	Low pressure & temperature
Common Mates	Steel, stainless, alloys	Cast iron, ductile iron, plastics
Key Advantage	Concentrated seal pressure for better hold	Even pressure distribution prevents cracking brittle parts
Gasket Type	Ring gaskets (inside bolt circle)	Full-face gaskets (with matching bolt holes)

Per ASME B16.5

Safety Must-Know: Never bolt an RF flange to a Flat Face cast iron (or similar brittle) flange. The raised “gap” creates uneven loading when torqued – hello, cracks and potential disaster.

The Texas Flange Promise

We get it: Every flange, bolt, and gasket is a critical link in your operation. That’s why we stock massive inventories of ASME B16.5 and B16.47 compliant flanges in multiple face types in every material and class you could need.

Got questions or need a quote? Reach out to the Texas Flange team… we’re here to geek out on your project specifics.

Bonus: How to Pick the Right Pressure Class Check out this quick video breaking down the temperature-pressure dance per ASME B16.5: https://youtu.be/h3Z1vLH5rx8
Your piping system deserves the right fit, let’s make sure it gets one.
