The Role of Pipe Flanges in Critical Infrastructure: Why Quality Matters

When we talk about “critical infrastructure” with regards to steel assemblies, we aren’t just talking about abstract concepts or government blueprints. We’re talking about the water systems that keep a city running, the oil and gas pipelines that power our homes, and the chemical plants that produce essential materials. At the heart of every one of these systems, literally holding the pressure together, are pipe flanges.

If you’re in procurement or site management, you know that a flange isn’t just a hunk of metal with some holes in it; It is a critical safety component. When a system is under thousands of pounds of pressure, the industrial flanges you chose are the only things standing between a productive day and a catastrophic failure. In this guide, we’re going to look at why quality for flanges and fittings is the non-negotiable factor in infrastructure and how that impacts your next order.

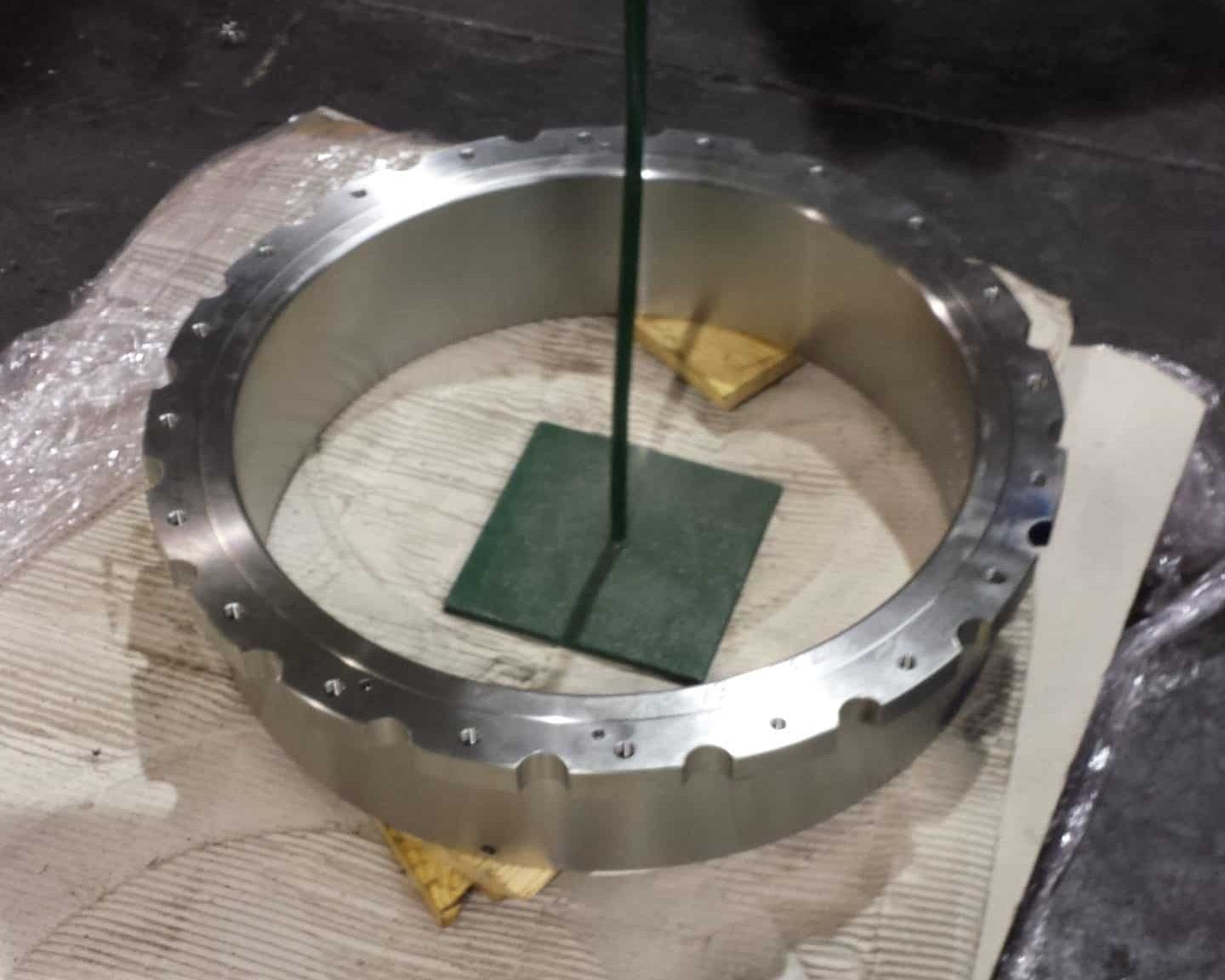

The Integrity of the Connection

In critical infrastructure, the “connection” is often the most vulnerable point of the entire system. Unlike a continuous run of pipe, flanges create a mechanical joint that must remain leak-proof under fluctuating temperatures, vibrations, and immense internal force. This connection can include calculations for a weld, a thread, and a joint gasket, and all of these factors are why the precision of the manufacturing process is so vital.

When we prioritize quality, we are essentially buying peace of mind regarding joint integrity. High-quality pipe flanges ensure that the mating surfaces are perfectly flat and the bolt holes are precisely aligned. In the field, a millimeter of deviation might not seem like much until you try to torque a bolt and realize the flange is warping, leading to a “weeping” leak that eventually turns into a full-scale blowout. These leaks aren’t just messy; in a high-pressure environment, they can be lethal. A quality connection means the gasket is compressed evenly across the entire surface, creating a seal that can withstand the test of time and the elements, and this helps to consider inspector safety as well.

Lifecycle vs. Line Item Cost

It’s easy to look at a quote and see industrial flanges as a simple line item where the lowest price wins. But in critical infrastructure, the real cost isn’t the purchase price, it’s the cost of failure.

Think about the labor required to replace a single faulty flange in a mid-stream pipeline: the shutdown, the purging of the lines, the crew’s hourly rate, and the lost revenue during downtime. By choosing quality up-front, you are investing in the “lifecycle” of the project, and spending a few more minutes now to avoid untold headaches in the future. Quality flanges per ASME and ANSI code are designed to withstand corrosion and fatigue for decades, not just until the next inspection cycle.

Furthermore, high-quality manufacturing reduces “re-work” during the installation phase. If a flange arrives on-site with a face that isn’t true or bolt holes that are off-center, your timeline is immediately blown. The time spent returning a part and waiting for a replacement far outweighs the few dollars saved by choosing a “budget” supplier. In the industrial world, time is money, and quality is the best way to save both.

Technical Deep Dive: Standards, Specs, and Materials

To ensure these connections don’t fail, the industry relies on a strict set of “rules.” These aren’t just suggestions; they are rigorous engineering requirements that ensure compatibility and safety across different systems and manufacturers. When you’re ordering for a major project, you’ll likely be looking at these specific standards:

Key Regulatory Standards

• ASME B16.5: This is the “bible” for pipe flanges from NPS 1/2 through NPS 24. It covers pressure-temperature ratings, materials, dimensions, tolerances, marking, and testing.
• ASME B16.47: This standard covers larger diameter flanges (NPS 26 through NPS 60), which are common in heavy industrial infrastructure, derived from the design philosophy of the ASME/ANSI B16.5 specification.
• ASTM A105: The standard specification for carbon steel forging for piping applications, often used to weld to A106 grade pipe.
• ASTM A182: If you’re dealing with high temperatures or corrosive environments, this covers the forged stainless steel and chrome alloy flanges you’ll need.

Understanding Pressure Classes

Flanges are categorized by their pressure-temperature ratings, typically ranging from Class 150 to Class 2500. It is a common misconception that “Class 150” means the flange can only handle 150 psi. In reality, the pressure it can handle depends on the material and the operating temperature. For example, a Class 150 carbon steel flange can handle much higher pressures at room temperature than it can at 800°F. Think of the pressure “class” as the standardized version for a set of bolt patterns and base thickness options, and not the actual pressure-temperature rating. Look with B16.5 for that calculation data.

Material Verification (The MTR)

Quality control means more than just having a stamp on the side of the metal. It means having the Mill Test Reports (MTRs) to prove that the chemical composition and physical properties of the steel actually meet these ASTM and ASME requirements. At Texas Flange, we provide the documentation that proves your industrial flanges are exactly what we say they are. In critical infrastructure, “trust but verify” is the motto you live by.

Making the Right Selection

Understanding the critical nature of your infrastructure project directly impacts which pipe flanges you should select. At Texas Flange, we see how the application dictates the engineering every day. Choosing the wrong style can be just as dangerous as choosing a low-quality material.

Weld Neck Flanges

These are the gold standard for critical infrastructure. The long, tapered hub provides a gradual transition of thickness to the pipe, which helps handle high-pressure and extreme temperature swings. Because the weld is a full-penetration V-weld, the joint is as strong as the pipe itself.

Slip-On Flanges

While great for lower-pressure applications and easier to align, they don’t have the same fatigue strength as a Weld Neck. They are slipped over the pipe and then welded both inside and out. If the infrastructure is subject to heavy vibration or significant thermal cycling, you might want to reconsider a Slip-On in favor of a more robust connection.

Blind Flanges

Often used for sealing the ends of pressure vessels or piping systems, or for providing access points for future expansion. Because these take the full force of the internal pressure, acting like a piston head, the thickness and material grade are paramount to prevent the “disk” from bowing or failing under load.

Lap Joint Flanges

These are used in conjunction with a “Stub End.” They are ideal for systems that require frequent dismantling for inspection or cleaning because the flange itself rotates freely around the pipe, making bolt hole alignment a breeze. However, they are not suited for extremely high-pressure environments.

Knowing your project’s specific stressors, like whether the line will carry corrosive chemicals, experience seismic shifts, or undergo massive thermal expansion, is crucial before you place an order.

Common Mistakes in Infrastructure Procurement

Even the most seasoned pros can run into issues. Here are the most common pitfalls we see regarding flanges in major projects:

• Ignoring Face Finish: People often focus on the material but forget the flange face. A smooth face vs. a serrated face requires different gasket types to achieve a seal. Using a soft gasket on a smooth face in a high-pressure system can lead to the gasket being “blown out.”
• Mismatched Schedules: This is a big one. Ordering a Weld Neck flange with a bore that doesn’t match the pipe’s schedule (e.g., Sch 40 vs Sch 80). This creates a “lip” inside the pipe that causes turbulence, vibration, and accelerated erosion.
• Bolting Errors: Using the wrong grade of studs or nuts. A high-pressure flange is only as strong as the bolts holding it together. Always ensure your hardware matches the pressure rating of your flanges.
• Tracing the Paperwork Too Late: In critical infrastructure, if you don’t have the MTRs, you don’t have a useable flange. Waiting until the parts are to be installed at the job site to ask for documentation can lead to massive delays and rejected inspections, so make sure to request it be emailed to you.

The Backbone of Industry

At the end of the day, pipe flanges are the silent workhorses of our modern world. They are the joints that hold our infrastructure together. Prioritizing quality over a few saved cents ensures that our water stays in the pipes, our power stays on, and our job sites stay safe.

By sticking to established ASME and ASTM standards, verifying your materials with MTRs, and choosing the right flange type for the job, you aren’t just buying hardware, you’re ensuring the longevity and safety of the project. Whether you are building a new desalination plant or maintaining a regional gas grid, the quality of your connections is the legacy you leave behind.
